Description

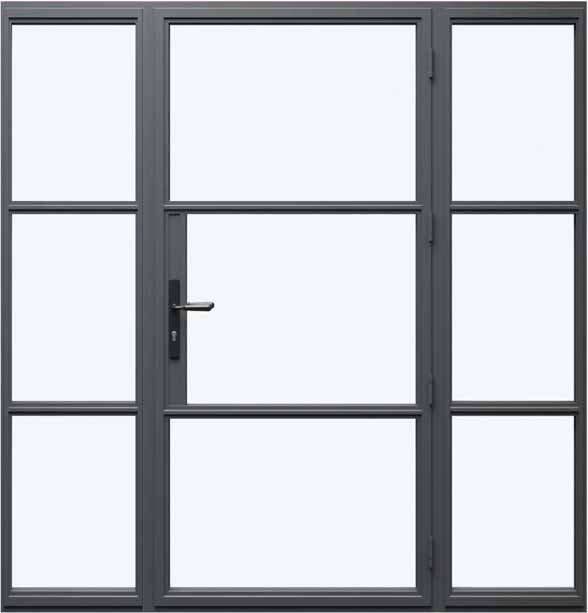

Heritage Aluminium Single Door with Side Panels (Left & Right)
The Heritage Aluminium Single Door with Side Panels (Left & Right) takes the narrowest leaf in the range and gives it the widest supporting glazing — fixed panels on both sides turn a single-door opening into a genuinely wide feature.
Classic Heritage Styling with Modern Performance
Without a top light to add height, all the visual interest here comes from width — two matching panels either side of a single door leaf, symmetrical and detailed with the same horizontal glazing bars throughout. It's a configuration that suits lower-ceilinged openings where a top light isn't practical but extra width still is.
Exceptional Thermal Efficiency
Three sections, one continuous frame — the 64mm thermally broken aluminium profile runs through the door leaf and both panels without interruption, and the whole assembly holds the same 1.4 W/m²K u-value as every other configuration in the range, regardless of the extra glazed width.
Advanced Security Built In
Both side panels are fixed and internally beaded, presenting no accessible opening point — the single door leaf carries the entire multipoint locking system, engaging at multiple points and backed by a cylinder and handle built to resist forced entry.
Made to Measure for Every Project
Getting two side panels to sit in correct proportion either side of one door leaf, without a top light to balance the composition vertically, is a specific challenge that generic sizing can't solve — every dimension here is built to your actual opening.
Standard Specification
- 1.4 U Value
- Multipoint locking system to BS3621
- Double glazed 28mm toughened energy saving safety glass units to BSEN1279 and BSEN12150
- Black warm edge superspacer bar between glass units
- High performance (patented) double-action ‘bubble’ gaskets maintain tight weather seals
- Unique ‘glazing flipper’ reduces cold transfer, water ingress and noise pollution
- 64mm thermal efficient multi chamber aluminium frame
- Fully compliant with the Part L Building Regulations
- 10 year profile guarantee
Dimensions
- Frame Width (min-max): 1212mm – 3012mm
- Frame Height (min-max): 1775mm – 2200mm
