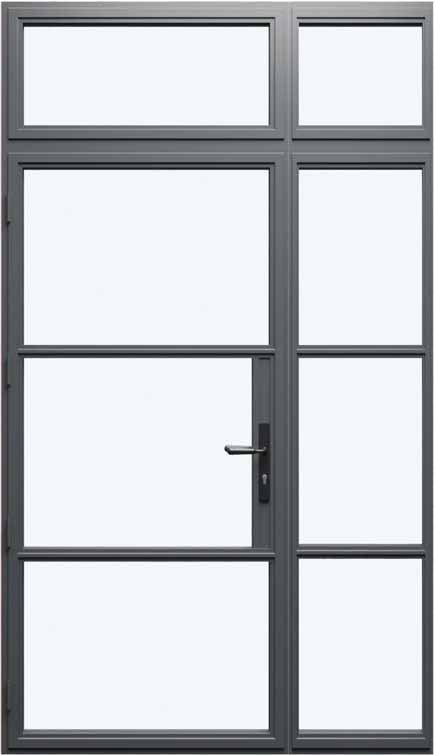

Heritage Aluminium Single Door with Right Side Panel & Top Light
The Heritage Aluminium Single Door with Right Side Panel & Top Light widens a single-leaf entrance without turning it into a full French door installation — a fixed panel to the right and a top light above add glazed area on two sides while only one leaf ever needs to be unlocked and opened.
Classic Heritage Styling with Modern Performance
It's a configuration that works well where the opening sits close to a corner or return wall on the left, leaving room to extend the glazing to the right instead. The panel and top light both continue the same horizontal bar detailing as the door itself, so the extra glazing reads as part of the design rather than an addition.
Exceptional Thermal Efficiency
The right panel and top light share the same 64mm thermally broken frame as the door leaf, so there's no performance drop-off at the fixed sections — the whole assembly holds a 1.4 W/m²K u-value, with 28mm toughened double glazing used consistently across every glazed element.
Advanced Security Built In
The door leaf carries the full multipoint locking system, tested to BS3621, while the right panel and top light are fixed and internally glazed — meaning the only point of entry on the whole opening is the single, well-secured door itself.
Made to Measure for Every Project
Balancing a single door leaf against a side panel and a top light is a three-way proportion, not a two-way one — which is why this is manufactured entirely to your opening's actual dimensions rather than assembled from standard-size parts.
Standard Specification
- 1.4 U Value
- Multipoint locking system to BS3621
- Double glazed 28mm toughened energy saving safety glass units to BSEN1279 and BSEN12150
- Black warm edge superspacer bar between glass units
- High performance (patented) double-action ‘bubble’ gaskets maintain tight weather seals
- Unique ‘glazing flipper’ reduces cold transfer, water ingress and noise pollution
- 64mm thermal efficient multi chamber aluminium frame
- Fully compliant with the Part L Building Regulations
- 10 year profile guarantee
Dimensions
- Frame Width (min-max): 912mm – 2012mm
- Frame Height (min-max): 2201mm – 3000mm
