Description

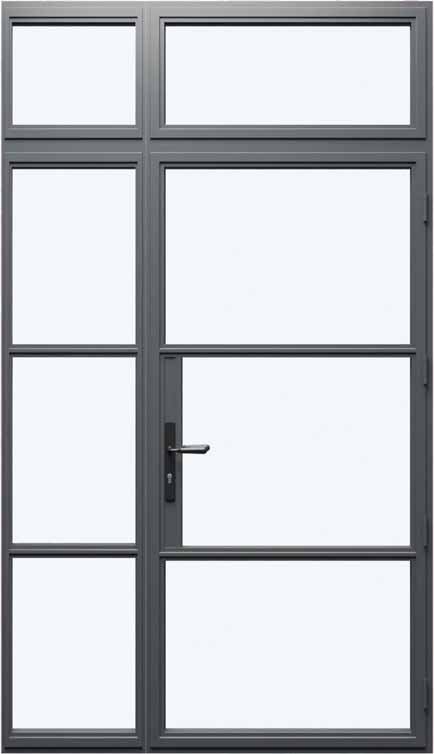

Heritage Aluminium Single Door with Left Side Panel & Top Light
Mirrored from its right-hand sibling, the Heritage Aluminium Single Door with Left Side Panel & Top Light puts the fixed panel to the left of the door leaf, with the same full-width top light spanning above both.
Classic Heritage Styling with Modern Performance
Which side the panel sits on is usually decided by the opening itself — a left-hand panel suits a return wall or corner on the right, freeing up space to extend the glazing left instead. The design language doesn't change with the mirroring: the same horizontal glazing bars, the same slim aluminium sightlines, just flipped.
Exceptional Thermal Efficiency
As with the right-hand version, thermal performance is identical regardless of which side the panel sits — the 64mm thermally broken frame and 1.4 W/m²K u-value apply across the door, the panel and the top light as a single connected system.
Advanced Security Built In
The single door leaf carries the multipoint locking system on its own, while the fixed left panel and top light are internally beaded with no external access point — security is entirely a function of the one opening leaf, and it's built to handle that responsibility.
Made to Measure for Every Project
The same three-way proportion challenge applies here as on the right-hand version — door leaf, panel and top light all need to sit correctly relative to each other, which is precisely why every frame is built to your opening's actual measurements.
Standard Specification
- 1.4 U Value
- Multipoint locking system to BS3621
- Double glazed 28mm toughened energy saving safety glass units to BSEN1279 and BSEN12150
- Black warm edge superspacer bar between glass units
- High performance (patented) double-action ‘bubble’ gaskets maintain tight weather seals
- Unique ‘glazing flipper’ reduces cold transfer, water ingress and noise pollution
- 64mm thermal efficient multi chamber aluminium frame
- Fully compliant with the Part L Building Regulations
- 10 year profile guarantee
Dimensions
- Frame Width (min-max): 912mm – 2012mm
- Frame Height (min-max): 2201mm – 3000mm
